MTX300 0.6/1 kV HEPR Insulated, LSOH (SHF1) Sheathed, Screened Flame Retardant Power & Control Cables (Single Core)
Applications
These cables are used for fixed installations on ships and offshore units in all locations and on open deck. The good screening qualities of the copper braid also reduce radio interference and electrical influences to electronics installations. These cables are flame retardant, low smoke & halogen free.
Standards
- DIN 89160/98
- IEC 60092-353
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

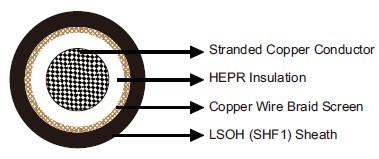

Construction
| Conductors | Class 2 stranded copper conductor. |
| Insulation | HEPR. |
| Overall Screen | Copper wire braid. |
| Outer Sheath | LSOH (SHF1). |
Core Identification
| Single core | Natural colour (beige) |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations | 6×OD |
| Temperature Range | -20℃ ~ +75℃ |
Dimensions and Weight
| Part No. | Construction No. of cores×Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
| mm^2 | mm | mm | mm | kg/km | |
| MTX300-1G7MZ1-R-1C4 | 1×4 | 0.7 | 1.2 | 7.3 | 110 |
| MTX300-1G7MZ1-R-1C6 | 1×6 | 0.7 | 1.2 | 8.3 | 140 |
| MTX300-1G7MZ1-R-1C10 | 1×10 | 0.7 | 1.2 | 9.3 | 190 |
| MTX300-1G7MZ1-R-1C16 | 1×16 | 0.7 | 1.2 | 10.3 | 270 |
| MTX300-1G7MZ1-R-1C25 | 1×25 | 0.9 | 1.2 | 12.3 | 380 |
| MTX300-1G7MZ1-R-1C35 | 1×35 | 0.9 | 1.2 | 13.3 | 480 |
| MTX300-1G7MZ1-R-1C50 | 1×50 | 1.0 | 1.3 | 15.3 | 660 |
| MTX300-1G7MZ1-R-1C70 | 1×70 | 1.1 | 1.4 | 17.3 | 900 |
| MTX300-1G7MZ1-R-1C95 | 1×95 | 1.1 | 1.4 | 19.5 | 1170 |
| MTX300-1G7MZ1-R-1C120 | 1×120 | 1.2 | 1.5 | 21.0 | 1410 |
| MTX300-1G7MZ1-R-1C150 | 1×150 | 1.4 | 1.6 | 22.8 | 1750 |
| MTX300-1G7MZ1-R-1C185 | 1×185 | 1.6 | 1.6 | 24.8 | 2160 |
| MTX300-1G7MZ1-R-1C240 | 1×240 | 1.7 | 1.7 | 27.8 | 2770 |
| MTX300-1G7MZ1-R-1C300 | 1×300 | 1.8 | 1.8 | 30.3 | 3440 |
